60 Series T-Slot Aluminium Extrusion covers S-8-60×60, S-10-60×60, S-8-60×90 and S-8-66×30 aluminium profiles.

S8-60*60 Aluminium Extrusion T-Slot Profile

Specification

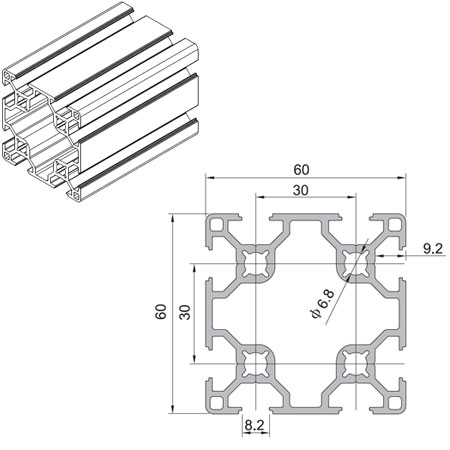

S8-6060 profile’s slot is 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 4 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. The system will be flexible and used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems.

S10-60*60 Aluminium Extrusion T-Slot Profile

Specification

S10-6060 profile is little difference with S8-6060, full slots are 10.2 mm in 60 series T-slot aluminium extrusion profiles; only one central hole that can be tapped in M10 screws, general purpose profile suitable for medium-duty and heavy-duty applications. The system will be flexible and used for a massive range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems.

60*60L Aluminium Extrusion T-Slot Profile

Specification

S10-6060L is the light profile with the thickness of diagonal bar only 1.3 mm which determines the tension & strength of profile is small. Full slots are 10.2 mm; only one central hole that can be tapped in M10 screws. The system will be flexible and used for a massive range of applications such as workbenches & workstations, Media/LED screen supporting structures, bike, smoking & sports shelters, and other multi-axis positioning systems.

60*90 Aluminium Extrusion T-Slot Profile

Specification

S8-6090 profile’s slot is 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 6 holes with φ6.8 mm. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts. The system will be flexible and for heavy-duty applications such as machine frames, heavy-duty supports, cantilevered gantries, safety guards, workstations, conveyors, and another multi-axis positioning.

66*30 Aluminium Extrusion T-Slot Profile

Specification

S8-6630 is angle profile with T-slot 8.2 mm in 60 series T-slot aluminium extrusion profiles; it has 4 holes with φ6.8 mm. Main features: L-shape allows for easy attachment of racks and shelves, Using for enclosures and display cases. The fit fastener & accessories: M6 screw or bolt and nut are optional to connect with other profiles and parts.
It’s usually used for a boom or corner range of applications such as machine frames, safety guards, workstations, conveyors, and other multi-axis positioning systems with high-quality visual appearance.
